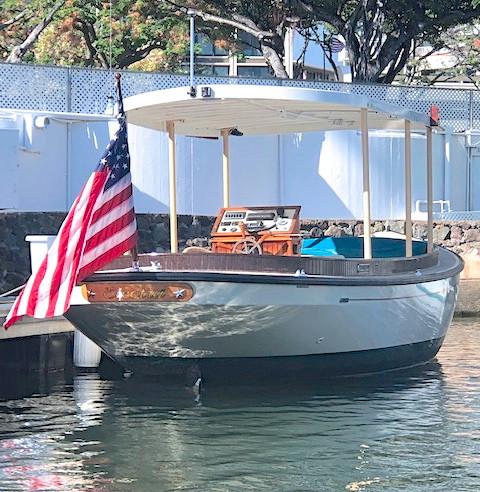

2003 ElectraCraft Custom Electrolaunch8m

• Dimensions/Construction/outfitting/appointments/features:

1. LOA: 25 ft   Beam: 8 ft   Draft: 20” dry & 24” fully loaded
2. Cold-molded epoxy hull w three diagonal Mahogany laminates, sheathed with 3 laminates fiberglass externally and 2 laminates internally; hull thickness approx. 5/8”
3. Deck: 3/8” marine Mahogany ply, sheathed w epoxy/fiberglass & coated with AwlGrip topcoat/non-skid
4. Interior Work Deck: 3/8” marine Mahogany subdeck, sheathed with 3/8” quarter-saw clear Fir deck planking; AwlGrip 545 primer & topcoat w non-skid
5. Port & Stb’d full-length positive buoyancy chambers makes the vessel unsinkable
6. Wrap-Around bench seating to compliment 20 persons, with PFD storage hammock under bench seats; 30 jackets capable; AwlGrip smooth finished
7. Cockpit Coaming in 3/8” marine plywood; fiberglass sheathed interior and 5/16” Sapelle Mahogany bead-board sheathed externally; stained and AwlGrip clear finished
8. Full length keel/skeg with propeller and rudder guard/strut
9. Collision bulkhead forward at 15% of waterline length
10. No below water line thru hull required
11. Bow U-bolt at waterline for trailing pulling and/or anchoring/towing
12. 12ea AGM gas & acid free batteries in contained battery compartment; 3 batteries per bank
13. Fore & aft mooring cleats (centered); capable for hanging the boat from ….literally; chrome plated bronze
14. 2ea amidships mooring cleats; 316SS
15. 2ea bow and 2ea stern mooring chocks; 316SS
16. 48V ELCO electric drive w 18”D x 18”P 4-blade BNZ propeller, LH rotation (Note: Elco has been building electric drives since 1892 and is a top seller of marine electric drives to this day; google them)
17. 1 1/8” Aquamat 21 SS propeller shaft w zinc anode swiper protection
18. PSS dripless shaft gland by PYI
19. 18” D x 18” P 4-blade NiBrAl Bronze propeller; LH rotation w zinc anode nut protection
20. Fiberglass composite rudder with SS 1” rudder shaft w removable Bronze lower bearing and Bronze upper bearing/packing gland (above waterline)
21. Teleflex push/pull cable steering with Edson Bronze 6-spoke steering wheel; teak spoke type
22. Pettit 2000E barrier/primer coated bottom (epoxy boat Do Not blister)
23. 3 coats Trinadad black anti-fouling paint
24. Hull sides/Deck/interior/canopy all AwlGrip 545 primed and 3 topcoats each
25. 1.5” x 2.5” D-section commercial grade rub-rail
26. 3’ x 5’ yacht Ensign w Teak flag staff and SS transom socket + flag storage clips in canopy
27. Club Burgee pole; Teak w fw’d socket + flag storages clip in cabin
28. Hard mount 12V horn; fw’d/port inside canopy
29. 2ea 1500 gph 12v automatic bilge pump systems
30. Auxiliary hand bilge pump (stowed under fw’d/port bench seat)
31. 3ea ABC fire extinguishers
32. Teak ventilation gratings in forward removable deck plates; centerline section
33. Telescoping boathook (stowed under fw’d counter)
34. 2ea telescoping paddles/boathooks (stowed under fore deck)
35. Danforth anchor w chain lead & 150 ft rode (stowed under fordeck in portable crate); bronze bow anchoring chock
36. Cold-Molded hard canopy; Mahogany ply sheathed with epoxy/fiberglass; Awlgrip primed & topcoat
37. Port/Stb’d/Steaming/Stern navigation lights w Mahogany side boards for side lights; hard canopy mounted
38. Hinge down 360 degree anchor light; hard canopy mounted
39. Hinge down VHF antenna; hand canopy mounted
40. Forward service counter w drains for food and beverage prep, w Sunberella cover and ; service ice box under
41. 24” throwing device (life ring) w 50 ft tether line and vessel name on ring;  SS storage rack on helm station
42. 2ft x 2ft removable aft deck panel for easy access to PSS gland, shaft anode, etc
43. Helm Station (hinged to provide 100% access to drive system and associated controls and cabling):

1. 48V power master switch and system fusing
2. Elco hermetically sealed throttle/shifter control w protector guard rail
3. Xantrex LINK 10 power monitor/throttle/range monitor
4. On/Off power key w power on indicator light
5. 12V power master switch and system fusing
6. 12V Horn & button
7. BlueSea 6-switch waterproof & fused 12V distribution panel
8. VHF radio
9. 12V fused sub-bus panel specific to electronics (stero/VHF/USB outlet/horn) + fused 24/7 power feed to stero
10. Antenna splitter providing antenna coverage to stereo & VHF
11. AM/FM/Blue Tooth stereo w 4 water proof speakers
12. 2 outlet USB charging port for cel phones, etc
13. Flip to dash provide comprehensive access to all 12V systems
14. ALL wiring meets ABYC & USCG standards, w ALL connections treated with dielectric coating

• Wicker helm seat w Burgundy Red velvet cushion
• Front & Center “Princess” seat on fw’d side of Helm station; provides access to battery charging systems
• 2ea 2ft x 4ft throw carpets
• 5ea 5/8” braid mooring lines
• 3ea 8” x 24” Taylor fenders w lanyards
• 6ea PFDs.
• Safety/Signal Kit (box) w new flares, mirror, whistle, horn
• Tool box in storage shelf/rack for miscellaneous gear under port fore deck
• 2 plastic storage boxes on elevated/securing blocks

The Company offers the details of this vessel in good faith but cannot guarantee or warrant the accuracy of this information nor warrant the condition of the vessel. A buyer should instruct his agents, or his surveyors, to investigate such details as the buyer desires validated. This vessel is offered subject to prior sale, price change, or withdrawal without notice.
